- Hign-concerned Chemical: None
- Processor Main Frequency: Depends on CPU
- Use: Commercial
- Memory Capacity: ≥ 4GB
- Hard Drive Capacity: 1TB
- Model Number: X4A-L
- Processor Brand: Intel
- Processor Model: Alder Lake-N
- Type: Mini Desktop
- Graphics Card Type: Integrated Card
- Brand Name: kingnovyPC
- Origin: Mainland China
- Certification: CE,FCC,RoHS
- Type: MINI PC
- Feature: Fanless System 0.00dB
- Graphics: Intel UHD Graphics
- Case Material: Brushed Aluminum Alloy
- Color: Black/Grey by random
- Netwok Ethernet: 4*Intel i226-V 2.5G LANs
Processors |
Cores & Threads |
Cache |
Max Turbo Frequency |
TDP |
Graphics |
Intel N100 |
4 cores, 4 threads |
6M |
3.40 GHz |
6W |
Intel UHD Graphics 750MHz 24EUS |
Intel Core i3-N305 |
8 cores, 8 threads |
6M |
3.80 GHz |
15W |
Intel UHD Graphics 1250MHz 32EUS |
Product Highlight

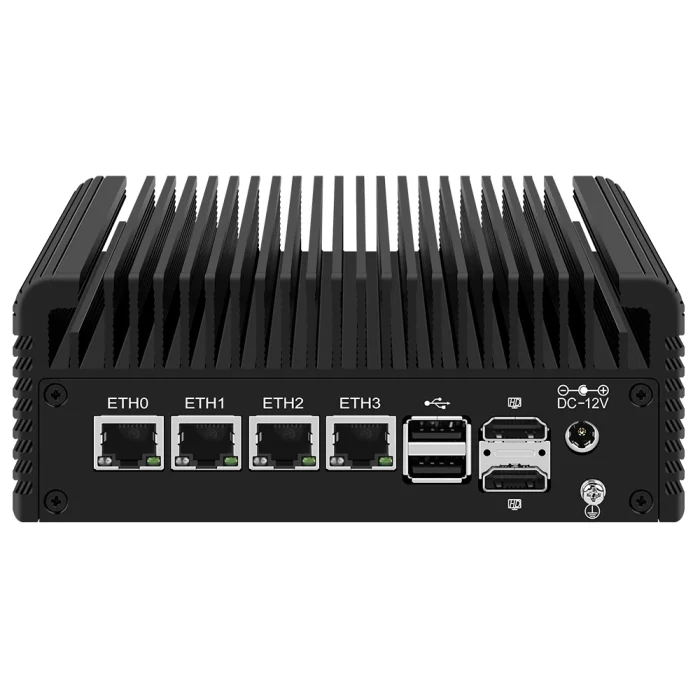

-4xIntel i226-V 2.5G RJ45 LANs, 2xUSB3.2, 4xUSB2.0.
-1xDDR5 SODIMM ram slot, support 4800MHz.
-Support triple storage: 2xM.2 2280 NVMe/PCIe3.0x1 2280 SSD+1×2.5 inch SATA3.0 SSD/HDD.
-1xTF card slot support storage and partial system boot.
-Support 4x4K display: 2xHDMI2.1, 1xDP1.4, 1xType-C(support 3-screens display at same time).
-Support wide voltage 12-19V input.
-Support TPM2.0, AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc.
-Full Aluminum Alloy high quality solid-built shell with three-sided long tooth-fins, wide heat dissipation area for excellent cooling performance, exquisite production craft on outside design.
-Fanless system without cooling fan, noiselessness and durability fit for industrial grade field, work as long as 7×24 hours.
-Low consumption TDP and can be mounted back of monitor by VESA bracket(optional).
Package List
1xMini PC
1xPower Adapter
1xPower Cord
1xSATA power&data cable
Internal 8010 cooling FAN cost US $9. If you need, pay at this link.
500GB 2.5'' HDD add extra 50$, 1TB 2.5'' HDD add extra 65$, 2TB 2.5'' HDD add extra 100$.
Upgrading link:https://vi.aliexpress.com/item/1005003370062156.html?gatewayAdapt=glo2vnm
(How many dollars to upgrade, pay how many pieces, US$1=1pcs, For example upgrade 1TB 2.5'' HDD, pay 65pcs for US$65, remember to leave message noting which one you upgrade for…)
