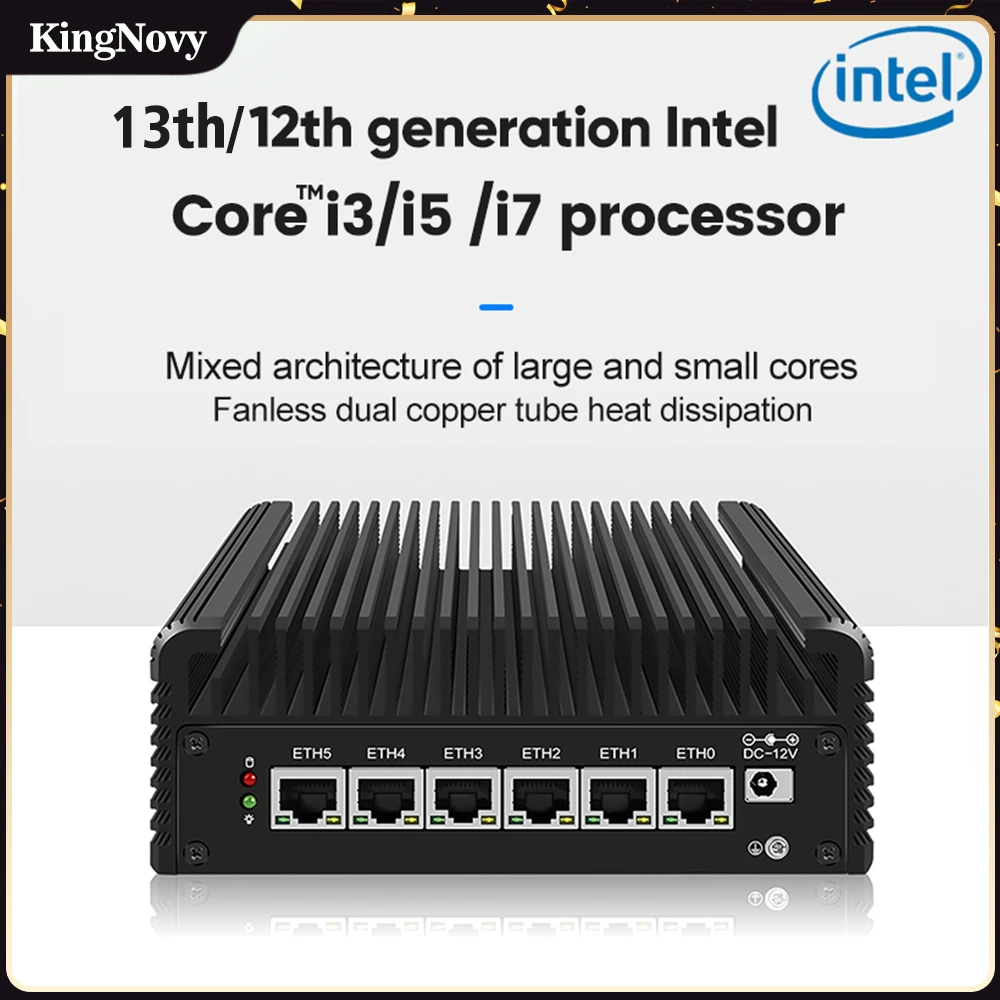

13th 12th Gen Fanless Mini PC USB4.0 i7 1355U i5 1335U 1235U i3 1315U Intel 6x i226-V LAN Firewall Appliance Router Proxmox ESXi
£309.09 – £1,005.26
- Hign-concerned Chemical: None
- Processor Main Frequency: Depends on CPU
- Use: Commercial
- Memory Capacity: ≥ 4GB
- Hard Drive Capacity: 1TB
- Model Number: X6C
- Processor Brand: Intel
- Processor Model: Core
- Type: Mini Desktop
- Graphics Card Type: Integrated Card
- Brand Name: kingnovyPC
- Origin: Mainland China
- Certification: CE,FCC,RoHS
- Type: MINI PC
- Case Material: Brushed Aluminum Alloy
- Color: Black/Grey by random
- Memory Type: 2*DDR5 None-ECC SODIMM Ram
- Netwok Ethernet: 6*Intel 2.5G LANs
Processors | Cores & Threads | L3 Cache | Max Turbo Frequency | TDP | Graphics |
Core i3-1215U | 6 cores, 8 threads | 10M | 4.40 GHz | 15W | Intel UHD Graphics max 1.10GHz |
Core i5-1235U | 10 cores, 12 threads | 12M | 4.40 GHz | 15W | Intel Iris Xe Graphics max 1.20GHz |
Core i3-1315U | 6 cores, 8 threads | 10M | 4.50 GHz | 15W | Intel UHD Graphics max 1.25GHz |
Core i5-1335U | 10 cores, 12 threads | 12M | 4.60 GHz | 15W | Intel Iris Xe Graphics max 1.25GHz |
Core i7-1355U | 10 cores, 12 threads | 12M | 5.00 GHz | 15W | Intel Iris Xe Graphics max 1.30GHz |

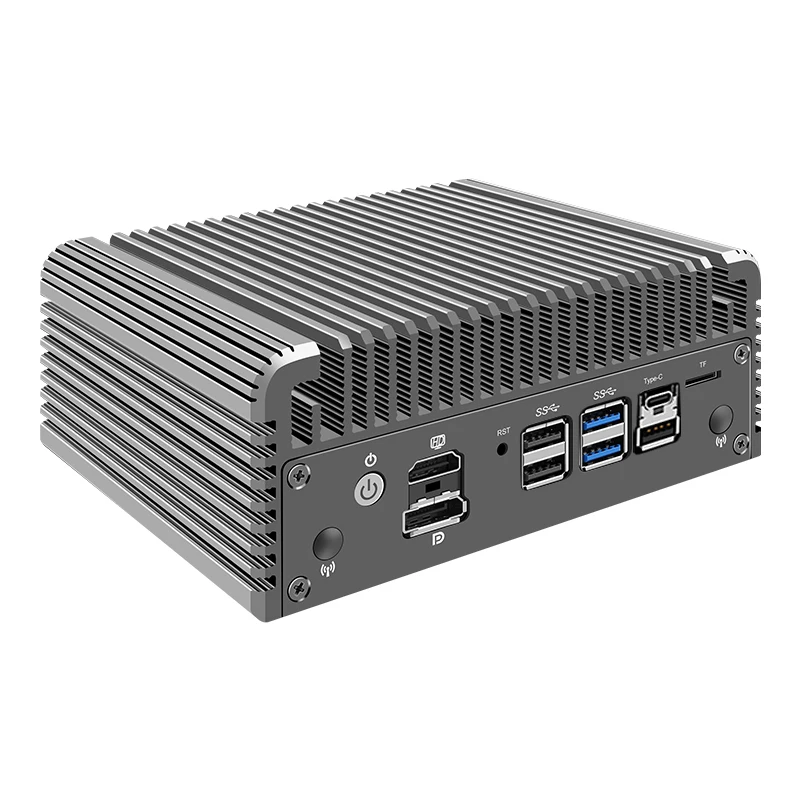

-6xIntel i226-V 2.5G RJ45 LANs, 2xUSB3.2, 3xUSB2.0, 1xType-C USB4.0, 1xTF card slot.
-2xDDR5 SODIMM non-ecc ram slots, support 4800MHz.
-Support 5 storages: 1xM.2 2280 NVMe/PCIe4.0x4 SSD+1xM.2 2280 NVMe/PCIe3.0x4 SSD+2xSATA3.0+1xTF card.
-Type-C USB4.0 supports 40Gbps data, 8K display, PD charge(19V 65W at least).
-1xM.2 2230 slot, supports WiFi6&Bluetooth connection(optional to buy).
-TF card slot supports storage and partial system boot.
-1xHDMI2.0, 1xDP1.4, 1xType-C, support 3x4K@60Hz UHD video display.
-Support TPM2.0, AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc.
-Innovative fanless design: Solid aluminum case with built-in dual copper tubes and longer tooth-fins gets much more efficient heat dissipation. Fanless design is noiseless and dustproof. A gift 8010 fan can be assembled inside case to achieve better cooling performance if you worry overheat. Fan sound is low.
-Low consumption TDP 15W and can be mounted back of monitor by VESA bracket(optional).
Package List
1xMini PC
1xPower Adapter
1xPower Cord(EU/US/UK/AU plug based on buyer's country)
1xSATA Cable
1×8010 fan(gift)
Welcome to click the picture of VESA Bracket to order together if you need:
You must be logged in to post a review.
Q1. Can you provide OEM/ODM service? How much do I need to pay for your OEM service?
Re: Yes we can. The charges for OEM service depends on the different level of customize. the process of customization is following:
1) Customer provide specific requirement.
2) Factory draw the design draft.
3) Customer confirm the design draft.
4) Factory start mass prodution.
Q2. Can you print my logo on the mini computer ?
Re: Yes, it is support . And we can make print your logo on the PC for free by laser engraving!
Q3. What is the Minimum Order Quantity (MOQ)?
Re: We can support 1unit sample for your test.
Q4. What is the lead time of your products?
Re: Sample order: 3-7 working days . Bulk order:3~15 working days ( depends on order qty);
Q5. How will you deliver my goods to me?
Re: We can ship by DHL, UPS, FedEx, TNT, etc international air express services;
Q6. What's the warranty?
Re: 3 years long warranty ! Whole lifetime technical support, Buy with confidence!
