Fanless Industrial 2*Lans Mini PC Windows XP/7/10 Intel i5 3317U 1037U 4*RS232 Desktop Mini Computer 300M Wifi HDMI+VGA
£201.17 – £421.84
- Processor Main Frequency: Depends on CPU
- Use: Commercial
- Memory Capacity: ≤ 128MB
- Hard Drive Capacity: ≤ 40GB
- Model Number: GK
- Processor Brand: Intel
- Processor Model: Core i5 3317U/Celeron 1037U/1007U
- Type: Mini Desktop
- Graphics Card Type: Integrated Card
- Brand Name: Topton
- Origin: Mainland China
- Certification: CE
- Type: MINI PC
- Operating System: Windows, Linux, Ubuntu
- Color: Black
- Feature: Fanless System 0.00dB
- Supported Hard Drive: 1*mSATA SSD+1*2.5 inch SSD/HDD
- Ethernet: 2*10/100/1000M Ethernet
- WiFi: 300Mbps, 802.11/b/g/n, Mini PCI-E(Bluetooth Optional)
- Video Display: 1*HDMI, 1*VGA
- Graphics: Intel Graphics HD 4000/2500
- USB Ports: 4*USB 3.0, 4*USB 2.0
- Serial Ports: 4*RS232 COM
- Chassis: Aluminum chassis fanless passive cooling
- Dimension: 234*150*50mm
Processor parameter for referance only :
1. CPU Intel Core i5 3317U 2 core 4 threads 3MB cache 1.7GHz Max 2.6GHz TDP 17W Graphics HD 4000.
2.CPU Intel Celeron 1037U 2 core 2 threads 2MB cache 1.8GHz TDP 17W Graphics HD 2500.
– Brushed Full Aluminum Alloy Black color shell, Exquisite production craft on outside design.
– Fanless system without cooling fan, no any noise, work as long as 24 hours.
– Built-in Wi-Fi or Bluetooth with dual external antennas for option.
– Low consumption TDP only 17W, save much energy and eco-friendly.
– Dual RJ45 Gigabit LAN and 4 RS232 COM ports fit for industrial field.
– Can install MSATA SSD+2.5” SATA HDD together.
– Support VGA + HDMI dual display output synchronously.
Notice
1. Barebone Mini PC ("No Ram No HD No WiFi" bundle) package DO NOT include WiFi antennas, if you need, please pay extra US $7 atthis link. Other bundles include WiFi.
2. DO NOT buy Barebone Mini PC ("No Ram No HD No WiFi" bundle)If you are NOT IT hardware technician. PC demands professional skill to assemble.We DO NOT compensate for buyer's man-made damage and faulty.
3. Price DO NOT include any destination cost like tariff, VAT, storage fee, remote dispatching fee etc.
|
Basic Information: |
|
|
Onboard CPU |
Intel Core i5-3317U/Intel Celeron 1037U |
|
TDP |
17W |
|
Motherboard |
170 x 120mm customized size |
|
BOIS |
AMI BIOS, ACPI supported |
|
Chipset |
Intel HM77 Express |
|
Memory |
1 x SO-DIMM DDR3L Slot support 2GB/4GB/8GB DDR3L DDR3L-1600, DD3L-1333, LPDDR3-1600, LPDDR3-1333 |
|
OS |
Windows XP/7/8/10, Linux |
|
PXE |
YES |
|
Audio |
Intel(R) display audio @ Intel Panther Point High Definition |
|
Network |
Onboard Realtek RTL8168/8111/8112 PCI-E Gigabit Ethernet NIC 10/100Mbps/1000Mbps BaseT LAN Adaptive |
|
Video |
* INTEL Ivy Bridge Graphics Controller(350-1050MHz), Intel® HD Graphics 4000 * INTEL Ivy Bridge Graphics Controller(350-1000MHz) |
|
Input/output port |
|
|
Switch |
1 x Power On/Off Switch |
|
Power |
1 x 12V DC In |
|
LED |
1 x LED |
|
USB |
4 x USB2.0, 4 x USB3.0 |
|
Display |
1 x VGA, 1 x HDMI |
|
LAN |
2 x RJ45 Giga LAN |
|
COM |
4 x RS232 COM |
|
Audio |
1 x MIC, 1 x SPK |
|
Storage |
|
|
MSATA |
1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s |
|
SATA |
1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s |
|
Wi-Fi |
|
|
Module |
1 x mini PCIE-half port for Wi-Fi module |
|
Antenna |
2 x inner RF cables and 2 x external antennas |
|
Power and Working Environment |
|
|
Input |
DC100-240V AC/50-60Hz |
|
Output |
DC 12V/5A |
|
Operating Temperature |
0/+70 Centigrade(32°F~140°F) |
|
Storage Temperature |
-20/+85 Centigrade |
|
Relative Humidity |
10%~85% (non-condensing) |
|
Product Dimension & Details |
|
|
Size |
234*150*50mm |
|
Weight |
Net 1.8kg, Gross 2.1kg |
|
Shell |
Black color aluminum alloy |
|
Mounting |
4 Mounting holes on case |
|
Cooling Mode |
Fanless |
|
Function |
Calls on function automatically, Wake-On-LAN |
|

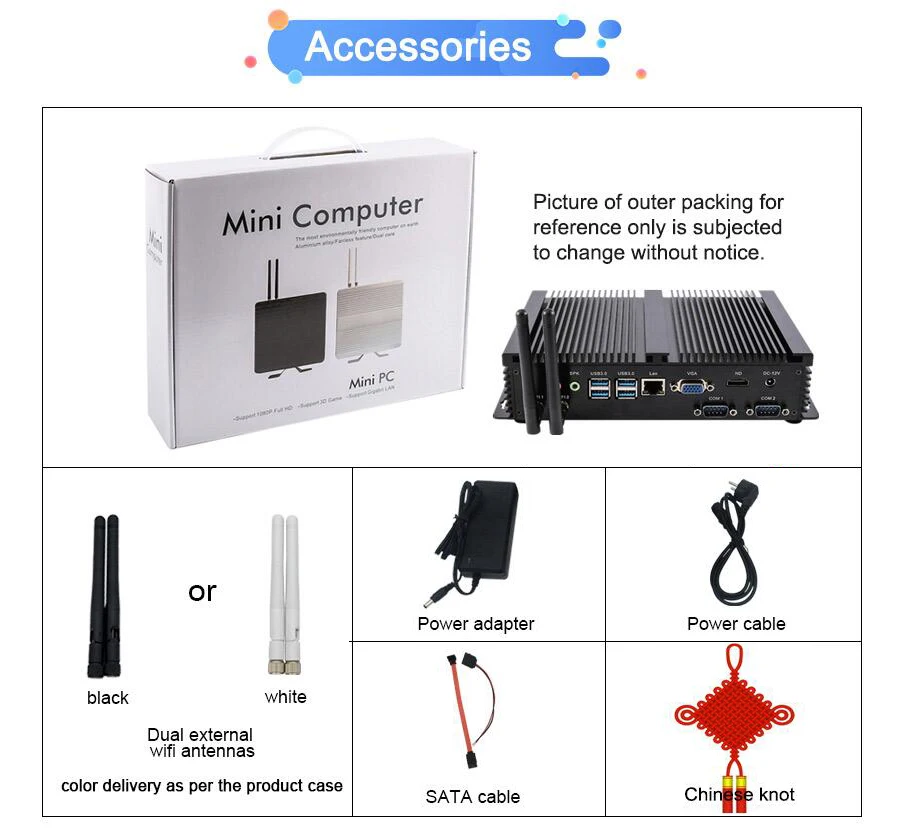

Package Content |
|
|
Standard |
1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag |
|
Optional |
Wi-Fi antennas,1xUser Manual, 1xLong Screws Bag |
About customs, We are not responsible for buyer's customs taxes, VAT, warehousing, brokerage etc any cost. But we try our best to help buyer lower or avoid customs duties, usually write a value of USD$20-70on package and describle item as "Mini PC".
If you want to declare real value or have other needs, don't hesitate to contact with us in time, we will do everything we can to help you.
Free Operating System: Default installed our trial OEMwindows 10/8/7/XPEnglish for free, other languages can be selected among: Russian,Spanish,Portuguese,French,German,Arabic,Italian,Japanese,Turkish,Greek etc. Please inform us which language you want to install. Other systems we can install free are like Linux, Ubuntu etc if you need.Seller is not responsible for trial OEM system.
Accessories as Ram, SSD, HDD, we use famous brand: samsung, micron, SanDisk, toshiba, hynix, crucial, liteon, kingston, phison etc , What brand we use depends on our test and our stock. What brand we use depends on our test and our stock. Generally we use Msata SSD installed on Mpcie port and leave the SATA port blank for you to install 2.5'' SSD/HDD.
1. USB Infrared remote (can turn power off but not on) add extra cost US$14.
2. Bluetooth4.0 USB Dongle add extra cost US$5.
3. External USB DVD-ROM add extra cost $18, External USB Bluray DVD-ROM add extra cost $45.
4. USB 2.4GHz Air Keyboard& Mouse, add extra cost $20.
5.Genuine OEM windowslicense sticker add extra cost 35$.
Upgrading link:https://www.aliexpress.com/item/32738298207.html
(how many dollars to upgrade, pay how many pieces, US$1=1pcs, For example upgrade USB IR remote, pay 14pcs for US$14, remember to leave message noting which one you uprade for…)
You must be logged in to post a review.
Q1. Can you provide OEM/ODM service? How much do I need to pay for your OEM service?
Re: Yes we can. The charges for OEM service depends on the different level of customize. the process of customization is following:
1) Customer provide specific requirement.
2) Factory draw the design draft.
3) Customer confirm the design draft.
4) Factory start mass prodution.
Q2. Can you print my logo on the mini computer ?
Re: Yes, it is support . And we can make print your logo on the PC for free by laser engraving!
Q3. What is the Minimum Order Quantity (MOQ)?
Re: We can support 1unit sample for your test.
Q4. What is the lead time of your products?
Re: Sample order: 3-7 working days . Bulk order:3~15 working days ( depends on order qty);
Q5. How will you deliver my goods to me?
Re: We can ship by DHL, UPS, FedEx, TNT, etc international air express services;
Q6. What's the warranty?
Re: 3 years long warranty ! Whole lifetime technical support, Buy with confidence!
