- Processor Main Frequency: Depends on CPU
- Use: Commercial
- Memory Capacity: ≥ 4GB
- Hard Drive Capacity: ≤ 40GB
- Model Number: X4C-L
- Processor Brand: Intel
- Processor Model: Alder Lake
- Type: Mini Desktop
- Graphics Card Type: Integrated Card
- Brand Name: kingnovyPC
- Origin: Mainland China
- Certification: CE,FCC,RoHS
- Type: MINI PC
- Feature: Fanless System 0.00dB
- Application: Industrial, education, business, home theater, projects
- Case Material: Brushed Aluminum Alloy
- Netwok Ethernet: 4*Intel i226-V 2.5G LANs
Notice
Intel i226-V is a new network card, pfSense, ROS etc system suppliers maybe have not released compatible driver to match yet, suggest to install newest version of following systems: OPNsense 22.x, OpenWrt, ESXi, Proxmox, PVE, CentOS etc. Please make clear before buying, DO NOT open dispute because of system issue.
Processor parameter for referance only
|
Processors |
Cores & Threads |
Cache |
Max Turbo Frequency |
TDP |
Graphics |
|
Intel N95 |
4 cores, 4 threads |
6M |
3.40 GHz |
15W |
Intel UHD Graphics 1200MHz 16EUS |
|
Intel N100 |
4 cores, 4 threads |
6M |
3.40 GHz |
6W |
Intel UHD Graphics 750MHz 24EUS |
|
Intel N200 |
4 cores, 4 threads |
6M |
3.70 GHz |
6W |
Intel UHD Graphics 750MHz 32EUS |
|
Intel Core i3-N305 |
8 cores, 8 threads |
6M |
3.80 GHz |
15W |
Intel UHD Graphics 1250MHz 32EUS |

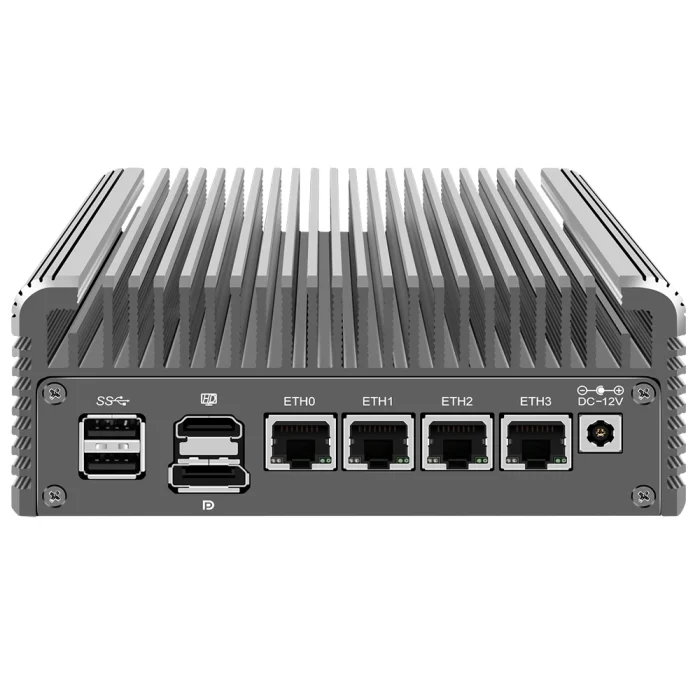

-4xIntel i226-V 2.5G UDE filter pure RJ45 LANs, 4xUSB2.0.
-1xDDR5 SODIMM ram slot, support 4800MHz.
-Support triple storage: 2xM.2 NVMe/PCIe3.0 2280 SSD+1×2.5''SATA SSD/HDD.
-1xM.2 2232 slot, support WiFi connection, also support transfer to 1xM.2 NVMe/PCIe3.0 2280 SSD with PCB adapter board.
-1xTF card slot support storage and system boot.
-Support dual display: 1xHDMI2.1, 1xDP1.4, 2x4K@60Hz UHD video display.
-Support wide voltage 12-19V input.
-Support TPM2.0, AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc.
-Full Aluminum Alloy high quality solid-built shell with three-sided Y-section ice thorns, excellent cooling performance, Exquisite production craft on outside design.
-Fanless system without cooling fan, noiselessness and durability fit for industrial grade field, work as long as 7×24 hours.
-Low consumption TDP and can be mounted back of monitor by VESA bracket(optional).
Package List
1xMini PC
1xPower Adapter
1xPower Cord
1xM.2 2232 to 2280 PCB adapter board
1xSATA Cable
1xScrews Bag
All bundles on sale DO NOT include WiFi(antennas), WiFi(antennas) cost US $10, M.2 2232 to M.2 2280 PCB adapter board cost US $15. If you need, pay at this link.
DO NOT buy Barebone Mini PC ("No Ram No Storage" bundle)If you are NOT IT hardware technician. PC demands professional skill to assemble and debug. Barebone bundle had best to use Samsung, Skyhynix etc ORIGINAL brand ram and storage.
Welcome to click the picture of VESA Bracket to order together if you need:
